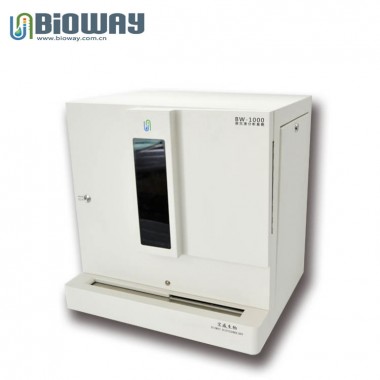

BW-1000 Specifications

[Inspection Principle] Using machine vision technology: automatic identify, classify and count the formed elements in urine with microscope automatic morphological methods.

[Characteristic] Can be used without centrifugation

[Test Items] Red blood cells, white blood cells, pus cells, squamous epithelial cells, non-squamous epithelial cells, transparent casts, unclassified casts, crystals, bacteria, blood bacteria, sperm, mucus, etc.

[Test Speed] 30 samples/hour

[Detection Mode] The microscope counts and classifies target identifications such as red blood cells, white blood cells, and crystals

[Sample Volume] Minimum urine volume 2ml, minimum injection volume 0.5ml

[Sample Process] The sample can be directly tested without centrifugation

[Injection Method] Automatic trail injection, 10 samples on the machine at the same time.

[Accuracy] more than 95% (Artificial auxiliary judgments)

[Repeatability Test] CV < 10%

[Contamination Rate] < 0.05%

[Report Form] xx/u l international universal quantitative unit, comprehensive graphic report of dry chemical analysis and urine formed elements quantitative analysis

[Dimensions] 520mm x440mm x 550mm (L x Wx H)

[Weight] 35kg

[Display] 5-inch LCD screen

[Data Interface] A full set of computer data interfaces, can connect to dry chemical urine analyzer, printers and networks

[Power Supply] AC 220V±10%, 50Hz

[Standard Configuration] Built-in computer, standard display, mouse, keyboard, printer
